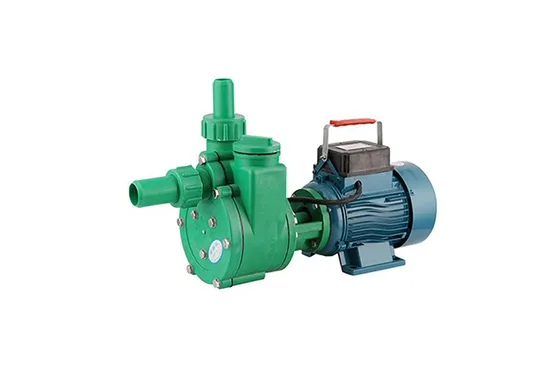

Chemical Pump Centrifugal Reinforced Polypropylene High Power Corrosion Resistant 750W
Overview Product Description FP Plastic corrosion resistant centrifugal pump can be used widely for chemical equipment, ;
Basic Info
Model NO. | 32FP-11 |
Position of Pump Shaft | Horizontal Pump |
Pump Casing Combined | Horizontal Split Pumps |
Mounting Height | Since Irrigation Centrifugal Pumps |
Impeller | Closed |
Usage | Pump, Pumps, Chemical Pump |
Warranty Period | 1 Year |
Transport Package | Wooden Box |
Specification | 54cm*29cm*28cm |
Trademark | Lanyoung |
Origin | China |
HS Code | 8413709990 |
Production Capacity | 999 |
Product Description
FP Plastic corrosion resistant centrifugal pump can be used widely for chemical equipment, environmental protection equipment, waste treatment, electroplating industry to transport acid base and corrosive liquid. But it cannot be used for chemicals with significant effects on hard PVC, such as aromatic hydrocarbon, halogen derivatives of aliphatic hydrocarbons, ketone, concentrated acid and alkali, etc.
Product ParametersMODEL | FLOW(M³/H) | HEIGHT(M) | MOTORPOWER(KW) | SPEED(R/MIN) | IMPORT(MM) | EXPORT(MM) | SUCTION(M) | FORM |
32FP-11 | 4M³/H | 11M | 0.75KW | 2900R/MIN | 32MM | 25MM | 3M | Direct Connection |
40FP-18 | 12M³/H | 18M | 1.5KW | 2900R/MIN | 40MM | 32MM | 4M | Direct Connection |
50FP-22 | 18M³/H | 22M | 2.2KW | 2900R/MIN | 50MM | 40MM | 4M | Direct Connection |
50FP-25 | 20M³/H | 25M | 3KW | 2900R/MIN | 50MM | 40MM | 4M | Direct Connection |
50FP-28 | 20M³/H | 28M | 4KW | 2900R/MIN | 50MM | 40MM | 4M | Direct Connection |
65FP-28 | 25M³/H | 28M | 4KW | 2900R/MIN | 65MM | 50MM | 4M | Direct Connection |
65FP-30 | 29M³/H | 30M | 5.5KW | 2900R/MIN | 65MM | 50MM | 4M | Direct Connection |
80FP-30 | 45M³/H | 30M | 5.5KW | 2900R/MIN | 80MM | 65MM | 4M | Direct Connection |
80FP-32 | 50M³/H | 32M | 7.5KW | 2900R/MIN | 80MM | 65MM | 4M | Direct Connection |
100FP-20 | 100M³/H | 20M | 11KW | 2900R/MIN | 100MM | 80MM | 4M | Direct Connection |
100FP-32 | 100M³/H | 32M | 15KW | 2900R/MIN | 100MM | 80MM | 4M | Direct Connection |
